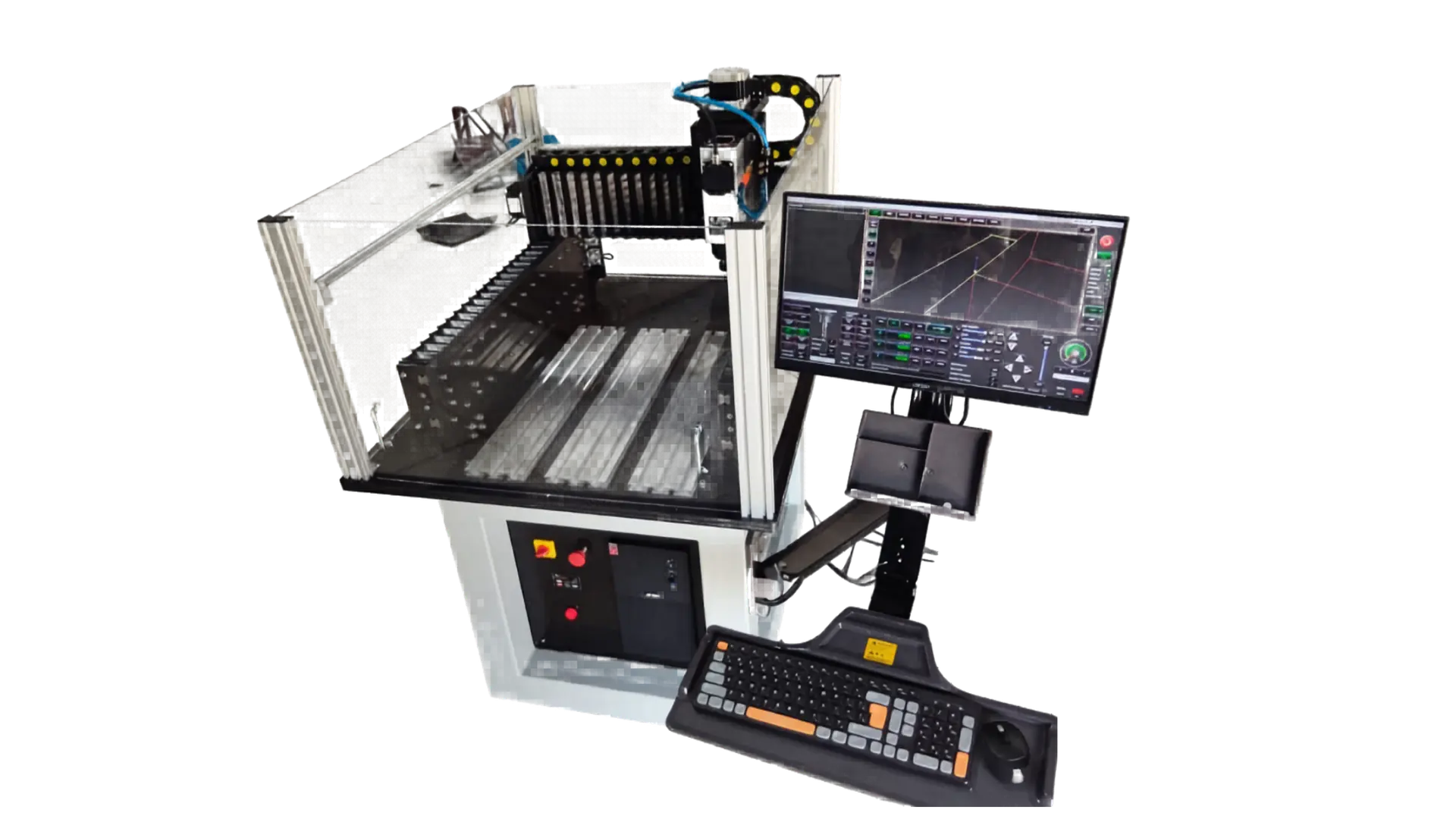

Why we built the world's first composite-superstructure desktop CNC, why we warranty that frame for life — and what that decision saves you in rupees over five years.
A spindle at 24,000 RPM injects vibration into everything it touches. The frame decides what happens next.
A head-to-head engineering comparison between Akriti's composite technology and conventional extruded aluminum desktop CNC kits.
| Technical Metric | 🏆 Akriti Composite Superstructure | Conventional Aluminum CNCs |
|---|---|---|
| Frame Construction | Carbon Fiber / Fiber Glass Composite Panels | 6063-T5 / T-Slot Aluminum Extrusions |
| Vibration Damping | ~50% of spindle vibration absorbed before the base plate (measured) | Poor (Amplifies spindle vibration & chatter) |
| Tested Repeatability | 15–25 µm (Dial Indicator Tested) | 80–200+ µm (Flex under cutting load) |
| Motion Hardware | Precision Rolled C7 Ball Screws & Linear Guides | Lead Screws / Rubber Timing Belts |
| Spindle Integration | Authentic Italian Teknomotor (up to 24,000 RPM) | Uncalibrated Chinese Brushed Motors |
| Facility Requirements | Single-Phase 220V / Domestic Socket | Single-Phase 220V |
| Frame Warranty | Lifetime Structural Warranty | 3 to 6 Months (Structural frame excluded) |
| Starting Price | Starting from ₹3.6 Lakhs | ₹1.2 – ₹2.5 Lakhs (High scrap rate & downtime) |
What a lifetime-warranted, vibration-dampened frame actually saves a running shop.
*Steel-frame figures are typical industry service costs for this machine class; your numbers vary with duty cycle and material.
No one warranties a frame for life unless the physics let them. Ask us anything about it — or put your own numbers through the calculator.
Our composite tub and gantry are constructed from a 24mm solid laminate combining Torayca® T300 12K Carbon Fiber and E-Glass (10:90 ratio) bonded with BhorBond® EPCH modified amine epoxy. Explore our mathematical models, laboratory loss factor data, and published academic research papers.
Internal loss factor η = 0.035–0.050 backed by CIRP Annals (2015) and Composite Structures (1998). Viscoelastic epoxy shear and ~70 ply interfaces dissipate harmonics instantly.
Spindle cutting forces produce only 26 microstrain on the 24mm plate — over 130× below Talreja’s matrix microcracking threshold (3,500 microstrain), guaranteeing infinite fatigue life.
Toray T300’s negative axial CTE (-0.41 µm/m·°C) pins linear rail positions. Cross-linked epoxy contains zero ferrous phases, making it 100% immune to coolant oxidation and galvanic pitting.
