CXC3 Meteor XL – 3 Axis Laser & CNC Combo

Build Area – 600 MM / 400 MM / 150 MM   |

Call / Whatsapp / Telegram – +91 9019054837    |

Email – contact@akriti.tech     |

FINANCING OPTIONS AVAILABLE

Description

World's Best Desktop / Tabletop CNC Machines

Laser & Milling Combo CNC Machine

75% PARTS MANUFACTURED IN INDIA

25% PARTS ITALY, GERMANY, JAPAN, China, TAIWAN & ITALY

Minimal
Maintenance

<50 Micron Repeat positioning

80 X 80 MICRON - SQUARE BEAM

Open Source
SW & HW

Online & Remote
Support Options

Spindle

Authorized dealer

Product Specifications

CATEGORY

DESCRIPTION

Dimensions (Footprint) - Length

1000 MM

Dimensions (Footprint) - Width

700 MM

Dimensions (Footprint) - Height

500 MM

Dimensions (Build Area) - Width

400 MM / 40 CM / 16 In / 1.3 Ft.

Dimensions (Build Area) - Length

600 MM / 60 CM / 24 In / 2 Ft.

Dimensions (Build Area) - Height

150 MM / 15 CM / 06 In

Electronics Board - Dimensions

360 (L) x 360 (W) x 190 (H) (MM)

Accuracy - Repeat Positioning

<50 Microns

Max Travel Speed (X Axis)

4 Meters / Minute

Max Travel Speed (Y Axis)

4 Meters / Minute

Max Travel Speed (Z Axis)

4 Meters / Minute

Spindle - Teknomotor

1.1 KW / 1.5 HP

Spindle - MAX RPM

18000

Spindle - Collet

ER 20

Controller

1) Arduino with UGS for Milling

2) Laser GRBL for Laser Control (Requires Windows computer)

Electricals - Shavison SMPS

36 V 10 Amp

Electricals - Drive

NEMA 23 & 24, Bipolar - Stepper Motor

Electricals - Drive Controller

4 A Stepper Drivers

Mechanical - Guides

HIWIN/GLT Linear Guide & Block

Mechanical - Drive

Hiwin/GLT Rolled Ball Screw

Technical Specifications

CATEGORY

DESCRIPTION

Dimensions (Outer) - Length

1000 MM

Dimensions (Outer) - Width

700 MM

Dimensions (Outer) - Height

500 MM

Dimensions (Build / Cutting Area)

400 MM / 40 CM / 16 In / 1.3 Ft.

Dimensions (Build / Cutting Area)

600 MM / 60 CM / 24 In / 2 Ft.

Dimensions (Build / Cutting Area)

150 MM / 15 CM / 06 In

Max Stock Height (Z Axis)

160 MM / 16 CM / 06 In

Electronics Board - Dimensions

360 (L) x 360 (W) x 190 (H) (MM)

Chassis

Akriti Composite Superstructure

Max Travel Speed (X Axis)

4 Meters / Minute

Max Travel Speed (Y Axis)

4 Meters / Minute

Max Travel Speed (Z Axis)

4 Meters / Minute

Spindle - Brand

Teknomotor

Spindle - Model

COM41470270

Spindle - Bearings

Single Bearing

Spindle - Power

1.1 KW

Spindle - Voltage in Volts (Star / Delta)

380 / 220

Spindle - MAX FREQ. HZ

300

Spindle - MAX RPM

18000

Spindle - Current in Amps (Star / Delta )

2.9 / 5.0

Spindle - Weight

4.94

Spindle - Collet

ER 20

Drive - X Axis

Hiwin Rolled Ball Screw & Nut - 16 MM

Drive - Y Axis

Hiwin Rolled Ball Screw & Nut - 16 MM

Drive - Z Axis

Hiwin Rolled Ball Screw & Nut - 16 MM

Guides - X Axis

Hiwin/GLT 20 MM Linear Guide & Block

Guides - Y Axis

Hiwin/GLT 20 MM Linear Guide & Block

Guides - Z Axis

Hiwin/GLT 20 MM Linear Guide & Block

Stepper Motor (X & Y Axis) - Model

NEMA 24, Bipolar - Stepper Motor

Stepper Motor (X & Y Axis) - Motor type

Hybrid Stepper Motor

Stepper Motor (X & Y Axis) - No. of steps/rotation

200

Stepper Motor (X & Y Axis) - Holding Torque

210 NCm

Stepper Motor (Z Axis) - Model

NEMA 23, Bipolar - Stepper Motor

Stepper Motor (Z Axis) - Motor type

Hybrid Stepper Motor

Stepper Motor (Z Axis) - No. of steps/rotation

200

Stepper Motor (Z Axis) - Holding Torque

110 NCm

Stepper Motor Drivers - Max Current

4 AMPS

Stepper Motor Drivers - Voltage Input

24 - 48 Volts DC

Dimensions

3 Axis

What's provided with the Machine?

  • Machine

    CNC Machine w/Electronics Box

  • Cutting Bits

    Milling Bits - 5 PCS,
    ---3MM Dia Single Flute Bit (for Aluminum / Acrylic / ACP)
    ---4MM Dia Straight Bit
    ---6MM Dia Straight Bit
    ---3MM Dia Corn Bit
    ---3MM Dia V Point Carving Bit

  • Collets for Spindle

    ER 16/20/25 Collet (Based on Spindle) - 3 PCS
    ---3MM Dia
    ---4MM Dia
    ---6MM Dia

  • Others

    T Nuts (For Securing the Material) - 10 Pcs
    Spanner Compatible with Spindle Nut with Rubber Grip - 1 Piece
    Long Controller Connector Cable - 1 Piece
    Stock Mounting Bolts & Nuts - 8 Pcs
    Composite Stock Holders - 4 Pcs

The Controller

Arduino Uno R3

Using an Arduino Uno R3 as a controller for CNC machines offers several benefits. First, it provides an affordable and accessible option for hobbyists and small businesses to build their own CNC machines.<p> <p>
The Arduino Uno R3 is widely available and relatively inexpensive, making it an attractive option for those on a budget. Second, the Arduino Uno R3 is easy to use and program, even for those without extensive programming experience.
<p> <p>
Its open-source nature means that there are many resources available online, including tutorials and code libraries, to help users get started. Finally, the Arduino Uno R3 offers flexibility and customization options, allowing users to tailor their CNC machines to their specific needs and preferences.

We offer two additional CNC controller options (Upgrades) that can be configured with our CNC machines to enhance their functionality.

The first option is the Parallel Port Controller, which is made in India and features the LinuxCNC operating system.

This controller & PC is embedded in the electronics box of the CNC and is an optional upgrade for a touchscreen interface at an additional cost.

Alternatively we can provide a non-touchscreen option as well.

The second option is the Ethernet Controller, manufactured in Hungary. This controller does not include a PC and is designed to work with any Windows computer (not included).

It provides seamless connectivity and compatibility with a wide range of Windows systems. You can use their own UCCNC Control software or Mach 3/4.

It can be configured with a Touch / Non-Touch PC & monitor combination

Laser Module

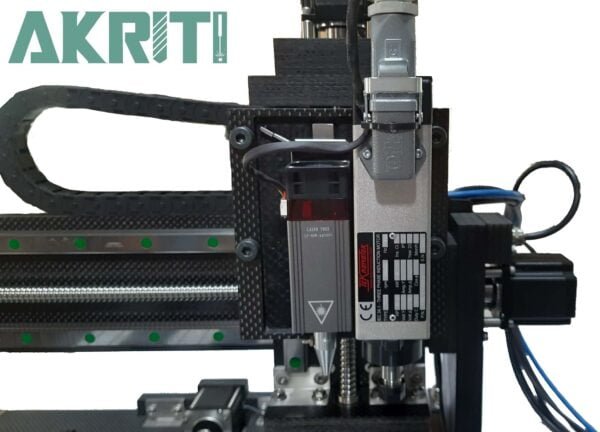

Included with the machine is a 10W Optical Power Laser Module With Air Assist — It’s small Size And refined appearance makes it a perfect match for our machine.

  • With Air-assist: Blowing through the air nozzle, which improves cutting performance and reduces burn marks.
  • Super fast engraving speed: 304 stainless steel, ultra-fast engraving on stainless steel-30mm/s.
  • Remarkable cutting ability: Cutting through 8 mm thickness plywood by one pass at speed of 1.5mm/s.
  • Fixed focus laser head: suitable for three-axis engraving machine, easy to install.
  • Original diode: Original diode, high quality, 20,000 hours life time!

Read More

Product Warranty

Regarding warranty offerings, we provide comprehensive coverage to ensure your peace of mind. With our OSL Coverage

One Year

Full Warranty, you can enjoy a worry-free first year of ownership, knowing that any manufacturing defects or issues will be promptly addressed.

Six Years

Extended Warranty (optional), allowing you to extend the coverage up to a total of 6 years 1 or 3 years, tailored to your needs.

Lifetime

 Lifetime Warranty for the superstructure. This ensures the longevity of your investment and provides enduring protection and assurance. Read more about why we offer this warranty below..

composite superstructure - lifetime warranty

Our products are made from Carbon Fibre & Fibre Glass, Composite Sandwich Structure – Ranging from 5 MM to 25 MM as needed. It provides the following benefits as compared to standard Steel or Aluminium framed CNC’s

  • Metal Fatigue – Doesnt suffer form sagging, hoggingor metal fatigue over time.
  • Vibration Dampening Properties – Composites have a high loss co-efficient and the structure is able to reduce / absorb vibrations leading to reduced chatter when milling / cutting materials
  • Light & Strong – Composites are less dense than steel and are yet comparable to them in Strength & Stiffness

We prepared and got a 6 MM thick piece of composite tested by Underwriters Laboratory. You can access their reports by clicking on theirl logog below.

Tested By

Options, Upgrades & Accessories

Laser Options

5W Optical Output Laser
with Air Assist

20W Optical Output Laser
with Air Assist

30W Optical Output Laser
with Air Assist

Convert your CNC into a 2-in-1 Machine. Laser Modules can be attached with a magnetic jig to the spindle. Perform basic engraving and cutting tasks of various materials.

Controllers

ParallelPort Controller

Ethernet Controller with UCCNC

Handheld Controller

Coolant & Clamping Systems

38L Coolant Pump & Coolant

Vacuum Clamping System

High Precision Vices, Clamps etc.

Other CNC Accessories/Options

Vacuum Dust Shoe

Bellows & Other Protective Covers

Z Axis Toolsetter Probe

Upgrade - Ground Ball Screws
8 Micron Accuracy Over 300 MM

Spindle Collets, Cutting Bits & Spanners

CNC Waterbath - 3 Axis
3 Sizes - Granite / Composites

Design & Control PC's

Industrial Fanless Control PC with Debian LinuxCNC with
22" 7H Hardness - 10 Point Touchscreen Monitor

Industrial Fanless Control PC with Windows 10 Pro with
22" 7H Hardness - 10 Point Touchscreen Monitor

Warranty Options

1 Year Extended Warranty
- Total 6 Years

3 Year Extended Warranty
- Total 6 Years
