CXC4 Mighty XL Standard

Build Area – 900 MM / 600 MM / 200 MM   |

Call / Whatsapp / Telegram – +91 9019054837    |

Email – contact@akriti.tech     |

FINANCING OPTIONS AVAILABLE

SKU: CXC4-MYX-STD Categories: , , , , Tags: , , ,
Edit

Introducing the CXC4 MIGHTY XL – STANDARD, a 4 Axis CNC machine with <10 Arc Minute Backlash (approx. 1/12th of a Degree). It utilizes a Carbon Fiber & Fiber Glass Composite Superstructure for its high rigidity and excellent dampening properties in the Desktop CNC segment (tested by Underwriters Laboratory).

These properties allow you to mill Soft Materials & Soft Metals like Machine Grade Aluminium, Copper, Granite, Brass, PCB, Bronze, Lead, Gold, Silver, Marble, Wood, MDF, Acrylic, Composite, Plastics etc. with <50 Micron repeat positioning accuracy on its 3 axis. Along with this precision you get a large build area of 900 x 600 x 200 MM of Y, X & Z Axis Travel. In inches it measures approx 36 x 24 x 8 Inches for Y, X & Z axis respectively.

Our A Axis (Rotary) it gives you a maximum stock length of 650 MM that can be affixed to a 4 Jaw Chuck (80MM Dia) and supported through the included Tail Stock

Beyond the structure we have utilized world class parts & components, sourced from India (75%), Taiwan, Italy, Japan & Thailand to bring you a great versatile Desktop CNC Machine, that you will love to use and which will last you a lifetime*.

* Composite SuperStructure

Universal Tail Stock (India)

Nema 24 Steppers (India)

Akriti Composite Panel - Y Axis (India)

Teknomotor Spindle (Italy)

Hiwin (Taiwan) Linear Guides

High Precision Jindal Aluminium Profiles

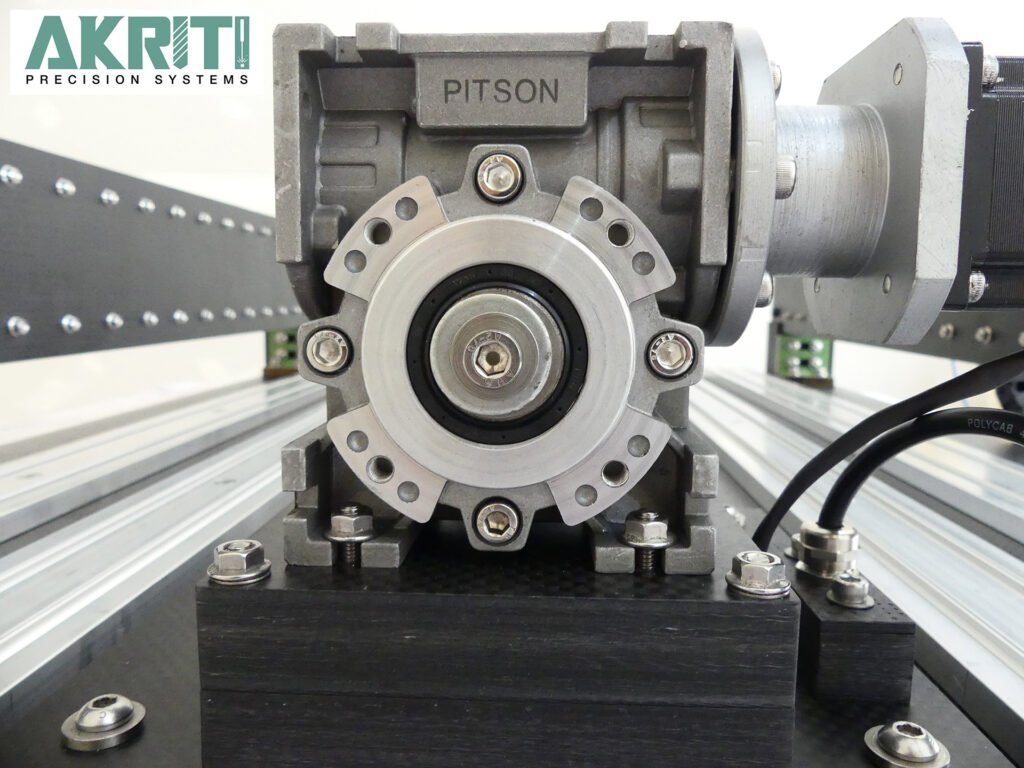

4 Axis Extreme Precision WormGearbox Kit

Akriti Composite Superstructure (India)

Edit

A perfect machine for all your soft materials to make precision parts or components. The CXC4 MIGHTY XL – STANDARD, is the right CNC router for you.

Its comes with a High Precision WormGearbox with less than 10 Arc Minute Backlash from an Indian Manufacturer. Higher accuracy on X, Y & Z axis is also possible with higher grade of rolled and ground ball screws.

Zero Chinese Parts / Components

75% India. Rest from Taiwan, Italy & Germany

Inhouse Composite Fabrication for Superstructure

In-House Design

Tensile & Flexural properties tested by ul.com

<50 Micron Repeat positiong Accuracy

10 Year Warranty on Composite Superstructure

Virtual, In-Person & On Location Training Options Available

1 or 3 Years - Self Service or On Site Extended Warranty Available

Included Accessories for Quick Start out of Box

Shipping - On Actuals

Dust Free Operation Minimal Maintenance Required

Extensive Video
&
Web Content

Made in India Break Out Board

Open Source Software (UGS)

Edit

Product Specifications

CATEGORYDESCRIPTION
Dimensions (Footprint) Length
1350 MM
Dimensions (Footprint) Width
1000 MM
Dimensions (Footprint) Height
730 MM
Dimensions (Build Area) Height
900 MM / 90 CM / 36 In / 3 Ft.
Dimensions (Build Area) - Width
600 MM / 60 CM / 24 In / 2 Ft.
Dimensions (Build Area) - Height
200 MM / 20 CM / 08 In
Dimensions (Build Area) - A Axis Length
650 MM
Accuracy Repeat Positioning
<50 Microns
Max Travel Speed (X Axis)
6 Meters / Minute
Max Travel Speed (Y Axis)
6 Meters / Minute
Max Travel Speed (Z Axis)
6 Meter / Minute
Spindle - Teknomotor
0.73 KW / 1 HP
Spindle - MAX RPM
24000 RPM
Spindle - Collet
ER 16
Controller
Parallel Port Breakout Board
Electricals - Shavison SMPS
36 V 10 Amp
Electricals Drive
2.8A, Bipolar - Stepper Motor
Electricals - Drive Controller
4A Stepper Drivers
Mechanical Guides
Hiwin/GLT Linear Guide & Block
Mechanical - A Axis Drive
Worm Gearbox - High Precision - <10 Arc Minute Backlash
Mechanical - 3 Axis Drive
Hiwin/GLT Rolled Ball Screw

Technical Specifications

CATEGORYDESCRIPTION
Dimensions (Outer) - Length
1350 MM
Dimensions (Outer) - Width
1000 MM
Dimensions (Outer) - Height
600 MM
Dimensions (Build / Cutting Area) - Length
900 MM / 90 CM / 36 In / 3 Ft.
Dimensions (Build / Cutting Area) - Width
600 MM / 60 CM / 24 In / 2 Ft.
Dimensions (Build / Cutting Area) - Height
125 MM / 1.25 CM / 05 In
Dimensions (Build Area) - 4 Axis Length
650 MM
Max Stock Height (Z Axis)
220 MM
Electronics Board - Dimensions
360 (L) x 360 (W) x 190 (H) (MM)
Chassis
15 MM - Akriti Composite Superstructure
Max Travel Speed (X Axis)
6 Meters / Minute
Max Travel Speed (Y Axis)
6 Meters / Minute
Max Travel Speed (Z Axis)
6 Meter / Minute
Spindle - Brand
Teknomotor
Spindle - Model
COMNC350294
Spindle - Bearings
Double Bearing
Spindle - Power
0.73 KW
Spindle - V (Y/r)
380 / 220
Spindle - MAX FREQ. HZ
400
Spindle - MAX RPM
24000 RPM
Spindle - CURRENT (r/Y)
3.6 / 2.1
Spindle - Weight
3.45
Spindle - Collet
ER 16
Drive - X Axis
Hiwin Rolled Ball Screw & Nut - 16 MM
Drive - Y Axis
Hiwin Rolled Ball Screw & Nut - 16 MM
Drive - Z Axis
Hiwin Rolled Ball Screw & Nut - 16 MM
Guides - X Axis
Hiwin/GLT 20 MM Linear Guide & Block
Guides - Y Axis
Hiwin/GLT 20 MM Linear Guide & Block
Guides - Z Axis
Hiwin/GLT 20 MM Linear Guide & Block
4 Jaw Chuck - Diameter
80 MM
Tail Stock
Universal
Gearbox Type
Wormgear
Gearbox Accuracy
< 10 Arc Minutes Backlash
Stepper Motor (X & Y Axis) - Model
NEMA 24 - N2467-284E
Stepper Motor (X & Y Axis) - Motor type
Hybrid Stepper Motor
Stepper Motor (X & Y Axis) - No. of steps/rotation
200
Stepper Motor (X & Y Axis) - Step Angle Accuracy
±5%(full step,no load)
Stepper Motor (X & Y Axis) - Temperature Rise
80°C Max(rated current,2 phase on)
Stepper Motor (X & Y Axis) - Holding Torque
210 NCm
Stepper Motor (X & Y Axis) - Detent Torque
9 NCm
Stepper Motor (Z & A Axis) - Model
NEMA 23 - N2355-254N
Stepper Motor (Z & A Axis) - Motor type
Hybrid Stepper Motor
Stepper Motor (Z & A Axis) - No. of steps/rotation
200
Stepper Motor (Z & A Axis) - Step Angle Accuracy
±5%(full step,no load)
Stepper Motor (Z & A Axis) - Temperature Rise
80°C Max(rated current,2 phase on)
Stepper Motor (Z & A Axis) - Holding Torque
110 NCm
Stepper Motor (Z & A Axis) - Detent Torque
3.5 NCm
Stepper Motor Drivers - Max Current
4 AMPS
Stepper Motor Drivers - Voltage Input
24 - 48 Volts DC
Movement Dimensions
4 Axis
Edit

What's in the Box

ITEM NAMENO. OF PCSCOMPANYCOUNTRY OF ORIGIN
CXC3/CXC4 Machine w/Electronics BOX
1
Akriti Precision Systems
India
Milling Bits - 5 PCS
Yash Tooling
India
--3MM Dia Single Flute Bits (for Aluminum / Acrylic / ACP)
1
Yash Tooling
India
--4MM Dia Straight Bits
1
Yash Tooling
India
--6MM Dia Straight Bits
1
Yash Tooling
India
--3MM Dia Corn Bits
1
Yash Tooling
India
--3MM Dia V Point Carving Bits
1
Yash Tooling
India
ER 16/20/25 Collet - 3 PCS
Lexis
India
--3MM Dia
1
Lexis
India
--4MM Dia
1
Lexis
India
--6MM Dia
1
Lexis
India
T Nuts (For Securing the Material)
10
Shivkiran Ent.
India
ER16-M Type Spanner with Rubber Grip
1
Jaibros
India
3 Axis CNC - USB 2.0 - A-B - 3 Meters - High Speed Cable
1
Generic
India
4 Axis CNC - Compatible Parallel Port Cable
1
Generic
India
Stock Mounting Bolts & Nuts
8
Akriti Precision Systems
India
Composite Stock Holders
4
Akriti Precision Systems
India
Edit

Product Comparison

CATEGORYCXC4 - Mighty XL - STDCXC4 - Mighty XL - PROCXC4 - Majestic - STDCXC4 - Majestic - PROCXC4 - Majestic XL - STDCXC4-Majestic XL - PROCXC4 - Mega53 - STDCXC4 - Mega53 - PRO
Dimensions (Footprint) Length
1350 MM
1350 MM
950 MM
950 MM
1350 MM
1350 MM
1970 MM
1970 MM
Dimensions (Footprint) Width
1000 MM
1000 MM
820 MM
820 MM
1020 MM
1020 MM
1320 MM
1320 MM
Dimensions (Footprint) Height
730 MM
730 MM
650 MM
650 MM
730 MM
730 MM
730 MM
730 MM
Dimensions (Build Area) Height
900 MM / 90 CM / 36 In / 3 Ft.
900 MM / 90 CM / 36 In / 3 Ft.
600 MM / 60 CM / 24 In / 2 Ft.
600 MM / 60 CM / 24 In / 2 Ft.
900 MM / 90 CM / 36 In / 3 Ft.
900 MM / 90 CM / 36 In / 3 Ft.
1520 MM / 152 CM / 60 In / 5 Ft.
1520 MM / 152 CM / 60 In / 5 Ft.
Dimensions (Build Area) - Width
600 MM / 60 CM / 24 In / 2 Ft.
600 MM / 60 CM / 24 In / 2 Ft.
400 MM / 40 CM / 15 In / 1.3 Ft.
400 MM / 40 CM / 15 In / 1.3 Ft.
600 MM / 60 CM / 24 In / 2 Ft.
600 MM / 60 CM / 24 In / 2 Ft.
900 MM / 90 CM / 36 In / 3 Ft.
900 MM / 90 CM / 36 In / 3 Ft.
Dimensions (Build Area) - Height
200 MM / 20 CM / 08 In
200 MM / 20 CM / 08 In
125 MM / 10 CM / 04 In
125 MM / 10 CM / 04 In
200 MM / 20 CM / 08 In
200 MM / 20 CM / 08 In
200 MM / 20 CM / 08 In
200 MM / 20 CM / 08 In
Dimensions (Build Area) - A Axis Length
700 MM
700 MM
350 MM
350 MM
700 MM
700 MM
1320 MM
1320 MM
Accuracy Repeat Positioning
<50 Microns
<50 Microns
<50 Microns
<50 Microns
<50 Microns
<50 Microns
<50 Microns
<50 Microns
Max Travel Speed (X Axis)
6 Meters / Minute
6 Meters / Minute
6 Meters / Minute
6 Meters / Minute
6 Meters / Minute
6 Meters / Minute
6 Meters / Minute
6 Meters / Minute
Max Travel Speed (Y Axis)
6 Meters / Minute
6 Meters / Minute
6 Meters / Minute
6 Meters / Minute
6 Meters / Minute
6 Meters / Minute
6 Meters / Minute
6 Meters / Minute
Max Travel Speed (Z Axis)
6 Meter / Minute
6 Meter / Minute
6 Meter / Minute
6 Meter / Minute
6 Meter / Minute
6 Meter / Minute
6 Meter / Minute
6 Meter / Minute
Spindle - Teknomotor
0.73 KW / 1 HP
0.73 KW / 1 HP
2.2 KW / 3 HP
2.2 KW / 3 HP
2.2 KW / 3 HP
2.2 KW / 3 HP
2.2 KW / 3 HP
2.2 KW / 3 HP
Spindle - MAX RPM
24000 RPM
24000 RPM
24000
24000
24000
24000
24000
24000
Spindle - Collet
ER 16
ER 16
ER 20
ER 20
ER 20
ER 20
ER 20
ER 20
Controller
Parallel Port Breakout Board
Parallel Port Breakout Board
Parallel Port Breakout Board
Parallel Port Breakout Board
Parallel Port Breakout Board
Parallel Port Breakout Board
Parallel Port Breakout Board
Parallel Port Breakout Board
Electricals - Shavison SMPS
36 V 10 Amp
36 V 10 Amp
48 V 10 Amp
48 V 10 Amp
48 V 10 Amp
48 V 10 Amp
48 V 10 Amp
48 V 10 Amp
Electricals Drive
2.8A, Bipolar - Stepper Motor
2.8A, Bipolar - Stepper Motor
4 A, Bipolar - Stepper Motor
4 A, Bipolar - Stepper Motor
4 A, Bipolar - Stepper Motor
4 A, Bipolar - Stepper Motor
4 A, Bipolar - Stepper Motor
4 A, Bipolar - Stepper Motor
Electricals - Drive Controller
4A Stepper Drivers
4A Stepper Drivers
4 A Stepper Drivers
4 A Stepper Drivers
4 A Stepper Drivers
4 A Stepper Drivers
4 A Stepper Drivers
4 A Stepper Drivers
Mechanical Guides
Hiwin/GLT Linear Guide & Block
Hiwin/GLT Linear Guide & Block
HIWIN/GLT Linear Guide & Block
HIWIN/GLT Linear Guide & Block
HIWIN/GLT Linear Guide & Block
HIWIN/GLT Linear Guide & Block
HIWIN/GLT Linear Guide & Block
HIWIN/GLT Linear Guide & Block
Mechanical - A Axis Drive
Worm Gearbox - High Precision - <10 Arc Minute Backlash
Worm Gear - Extreme Precision - <5 Arc Minute Backlash
Worm Gearbox - High Precision - <10 Arc Minute Backlash
Worm Gear - Extreme Precision - <5 Arc Minute Backlash
Worm Gearbox - High Precision - <10 Arc Minute Backlash
Worm Gear - Extreme Precision - <5 Arc Minute Backlash
Worm Gearbox - High Precision - <10 Arc Minute Backlash
Worm Gear - Extreme Precision - <5 Arc Minute Backlash
Mechanical - 3 Axis Drive
Hiwin/GLT Rolled Ball Screw
Hiwin/GLT Rolled Ball Screw
Hiwin/GLT Rolled Ball Screw
Hiwin/GLT Rolled Ball Screw
Hiwin/GLT Rolled Ball Screw
Hiwin/GLT Rolled Ball Screw
Rack & Pinion + Ball Screw
Rack & Pinion + Ball Screw
Edit

Completed Designs in Different Materials

Click / Tap to zoom

Video Gallery

Additional information

Weight250 kg
Dimensions1400 × 1200 × 800 mm
